SYLVANIA - QUADRO

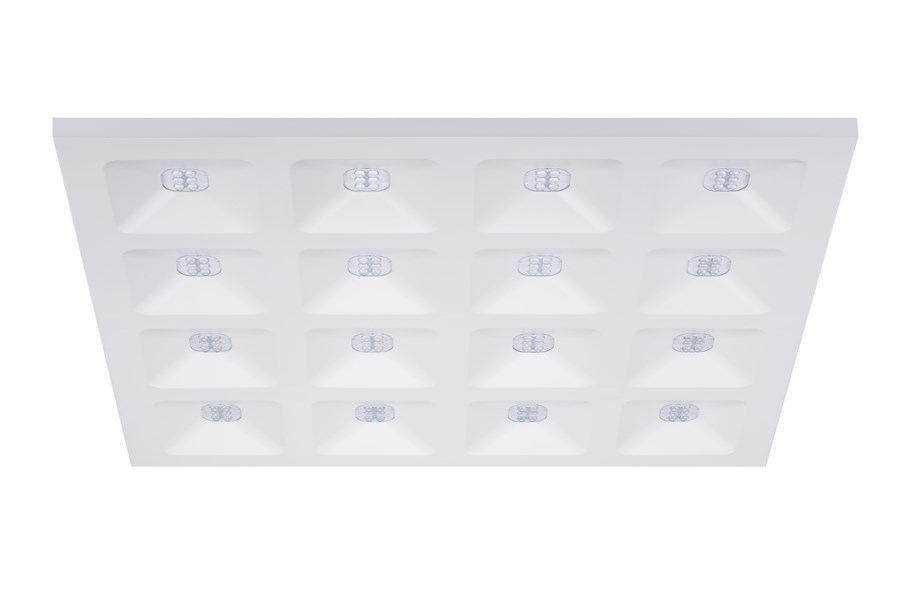

Quadro is a unique range of recessed architectural panels with low glare of UGR<16, suitable for lighting applications where comfort light is extremely important.
Quadro is ideal for offices, technical departments, meeting rooms, classrooms and other general indoor lighting applications.
Its peerless design creates a particular setting while it performs high efficacy up to150lm/W.
The range features multipower functionality where the luminous flux of the luminaire can be tailored to local needs during installation by only setting a quick selector switch.
The range includes 600x600, 625x625 and 1200x300 mm modules: Multipower, DALI and SylSmart Standalone enabled versions available for additional comfort and energy saving.
Features
- Its stylish design makes it a unique proposition on the market
- Slim design with width of 18 mm makes it perfect for shallow ceiling voids
- Meets IK08 and IP40 (from the front) requirements
- Available in 600x600, 625x625 and 1200x300 mm modules
- Loop in-Loop out facility with push fit terminal block for quick wiring
- Surface mounted and pendant installation are also possible with selected accessories
- High performance: delivers up to 4650 lumen output (4000K), and up to 150lm/W (luminaire efficacy on Multipower, 15W, 4000K)
- Adjustable lumen output with multipower driver design ranging from 15-34W and 2250-4650lm (4000K) with 8 settings to meet all installation needs with one single product
- Delivers comfort light with low UGR level less than 16
- DALI and SylSmart Standalone (SSC) enabled versions available
- Available in Warm White (3000K) and Neutral White (4000K)
- MacAdam step ellipses selection Step 3 (SDCM 3)
- Long lifespan: 77,000 hours life at 80% of the original output L80B20
